SDS Physical tools include:

-Tools for Ground Grid, Trench Layout and Conduit Modeling

-Fitting Placement Tools

-Tools to Model Cable and Bus Layout

-Lightning Protection Design

-Tools to Work with Point Cloud Scans for Brownfield Projects

-Corona and Bus Design Calculations

-Design Checks Include Phase to Ground, Phase to Phase, Fence Safety Clearance and Live part to Roadway Clearance. (Check out our Utility DataHub (UDH) to add additional design check capabilities)

Request More Information

Media Library

Utility Data Hub™ for Substation Design Suite™ Provides Advanced
Design Checks and Enterprise Asset Management Integration

Substation Design Suite™ Physical – P&C Checking

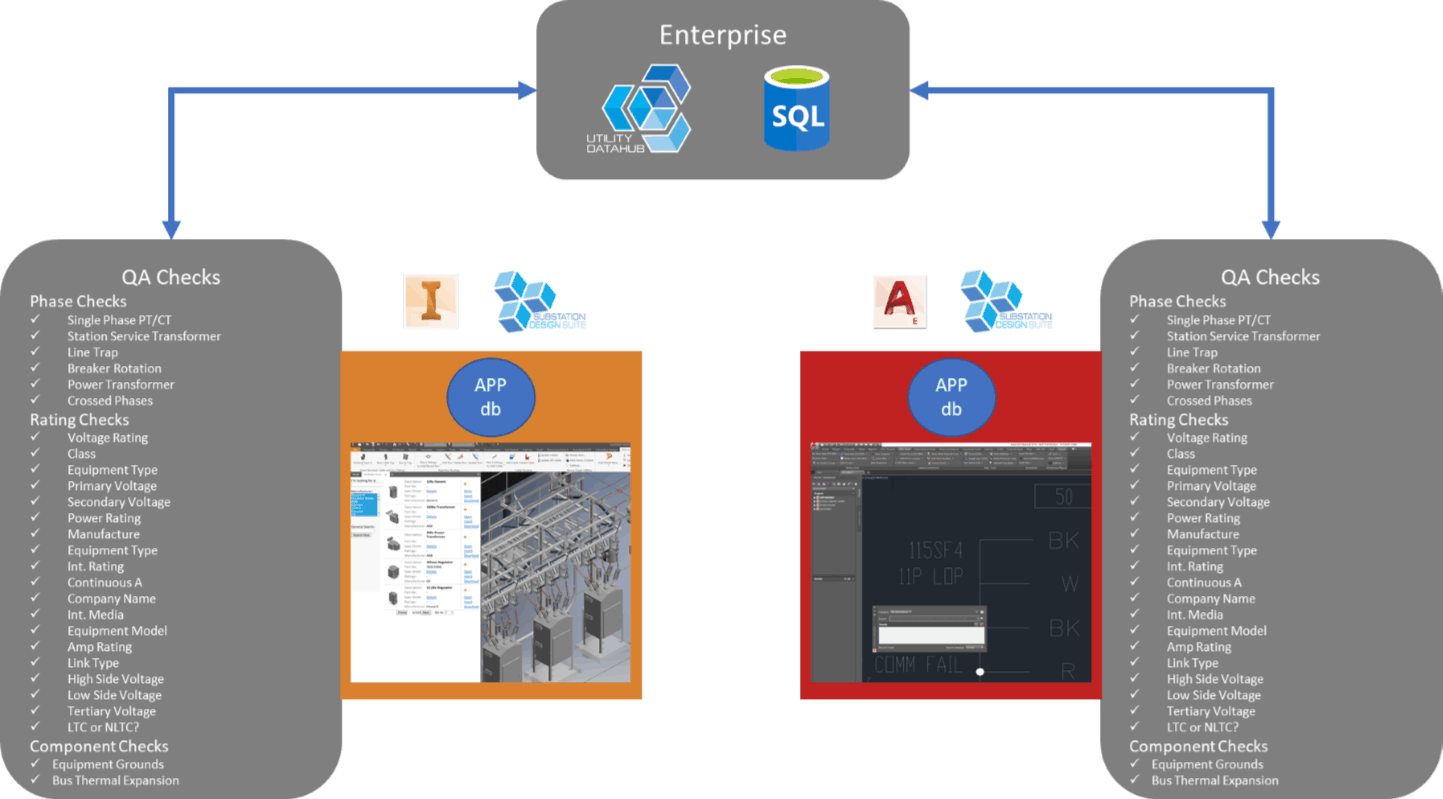

Substation Design Suite™ (SDS) Physical and P&C Checking module performs a series of design checks between your SDS Physical and SDS P&C substation design. This module will help reduce the amount of time for checking and rework as well as costly construction errors.

Utility Data Hub™ for Substation Design Suite™ – Enterprise Asset Management

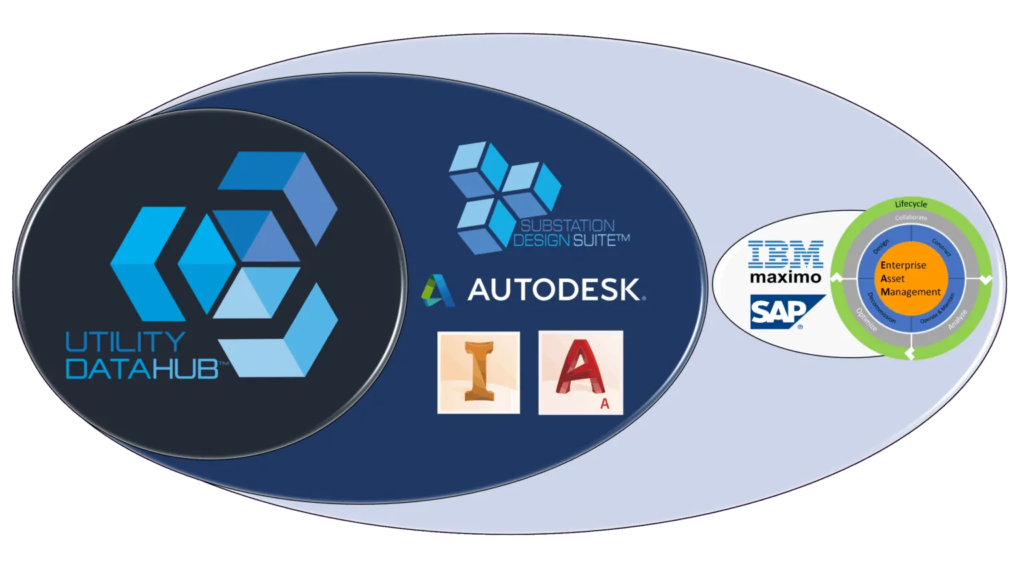

Substations contain many assets that need to be tracked from the point they are commissioned to when they are retired. SDS to EAM can integrate your substation design information into your Enterprise Asset Management system eliminating the need to manually enter asset data.

Frequently Asked Questions about
Substation Design Suite™

Do I have to purchase the entire suite? Or can I purchase separate modules?
Many of our customers only do physical or electrical design. Because of this, our modules are sold separately.
Does SBS provide training for Substation Design Suite™?
Yes! SBS provides training and mentoring programs. Learn more information about our offerings.
Do I need Autodesk Inventor or can I use Autodesk Inventor LT?
Autodesk Inventor is required. Substation Design Suite™ is not compatible with Autodesk Inventor LT.
Does Substation Design Suite™ provide substation content?
Substation Design Suite™ utilizes our Utility Content product for substation content. With Utility Content you can gain access to manufacturer models or create models with our Content Configurator to help design intelligent 3D substations. Please visit Utility Content at www.utilitycontent.com to learn more.
